Services

CNC Water Jet Byjet L6030 - Bystronic - Switzerland

Water Jet cutting service:

• automated machine for water jet sheet cutting with two cutting heads
• max. cutting dimension 3000x6000 mm
• max. cutting thickness 200 mm
• option to cut in angle 45° related to the Z-axis
• option to cut and perforate the tubes of round and square cross-section
• the thickness of jet from 0,5 mm
• option to cut all steel materials, messing, bronze, aluminium, marble of composite materials, plastic, glass etc.

CNC Laser Byspeed 4020 - Bystronic Switzerland

Laser cutting service:

• automated machine for laser sheet cutting
• max. cutting material thickness 15 mm
• max. dimensions of cutting 2000 x 4000 mm
• thickness of cutting slip from 0,3 to 0,5 mm
• laser strength 4,4 kW
• option to cut all carbonic and alloy steel materials

CNC Press Brake Bending Machine Bystronic-Switzerland and LVD - Belgium

• max. length of bending 3,1 m
• max. the thickness of bending 8 mm
• laser angle measurement
• option to bend in 6 axes

CNC Shearing Sheet machine Bystronic- Switzerland and LVD - Belgium

• max. length of cutting 3,1 m
• max. thickness of bending 6 mm

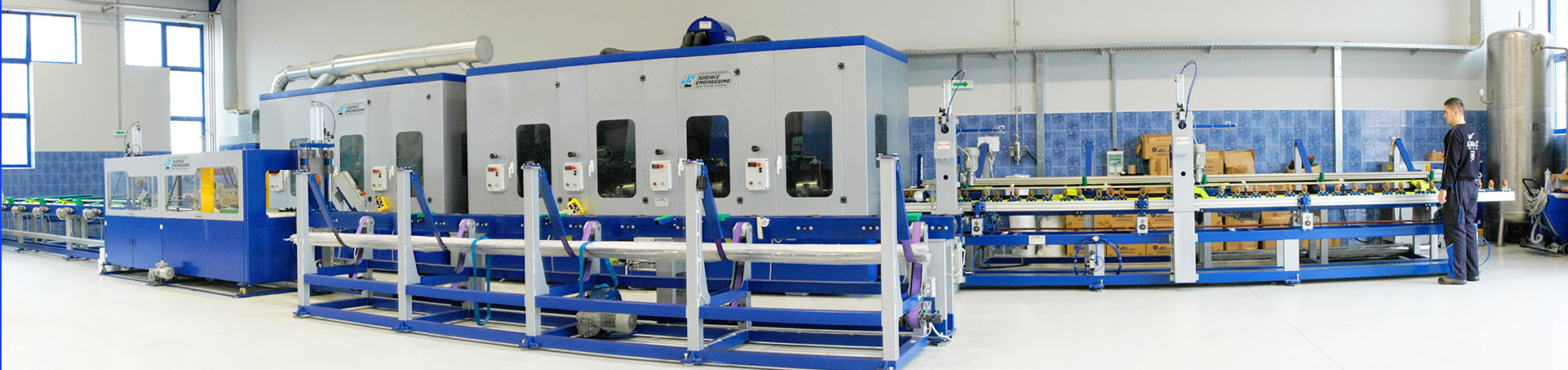

CNC Polishing Machine for round shaped materials

Polishing and grinding of round inox tubes:

• completely automated machines provide the grinding service to desired granulation
• completely automated machines provide the grinding service to desired granulation
• the producer is the Italian company SURFACE ENGINEERING s.r.l.
• option to grind and polish the tubes from Ǿ 12 mm to Ǿ 220 mm
• automated packaging of tubes in PVC foil thickness up to 70 µm

CNC machine for grinding the square-shaped and rectangular materials

Grinding of square-shaped and rectangular inox tubes and flat steel bars:

• completely automated machines provide the service of grinding to granulation on demand
• the producer is SURFACE ENGINEERING s.r.l. from Italy
• option to grind the tubes from 15 x15 mm to 150 x 150 mm
• option to grind the flat steel bars from 30 x 3 mm to 150 x 20 mm

Round polishing of sheets machine

Dimensions of work surface max:

• width 1500mm
• length 12.000mm
